Ushio, Inc. has recently launched our new high-efficiency, low operating current HL65261MG series laser diodes (LDs). This addition to our 660nm product line enables the continued expansion of sensor devices equipped with red LDs as their light source.
Laser distance sensors span a wide range of industrial uses, from traditional applications in construction and civil engineering to emerging needs for the factory automation (FA) of manufacturing lines, logistics systems, and unmanned operations. In particular, Time of Flight (ToF) laser distance sensors use a red or infrared laser as their light source, providing a long detection distance of several tens of meters, as well as high accuracy positioning capabilities.
In ToF sensor applications, high pulsed light output is required to support highly accurate, long distance sensing. However, there is also a demand for improved LD efficiency and lower operating current in order to create more efficient measurement devices (e.g. photoelectric sensors).
In an effort to meet these rising market demands, Ushio has reviewed the chip structure of our existing 660nm products. Through the improvement of light utilization efficiency and significant reduction of the reactive current, we have successfully improved the wall plug efficiency by 25% and reduced the operating current by 35% for the HL65261MG series.
Features of HL65261MG series (Tc=25°C)
Details
- Optical output power: 80mW (CW), 300mW (pulsed – pulse width: 10ns, duty: 10%)
- Lasing wavelength: 658nm
- Wall-plug efficiency*: 34%
- Operating temperature: -10° – +60° C (CW); -10° – +75° C (pulsed)
- Single transverse mode
- TE mode oscillation
- MTTF >10,000 hours
*The energy conversion efficiency with which the system converts electrical power into optical power.
Applications
- ToF sensor (distance sensor)
- Photoelectronic sensor
- LiDAR
Packaging
- Φ5.6mm CAN package
HL65261MG Internal Circuit
HL65262MG Internal Circuit
HL65264MG Internal Circuit
Typical Characteristic Curves
Output Power (CW) vs Forward Current
Tc=0, 10, 25, 35, 45, 55, 60℃
Typical Characteristic Curves
Output Power (Pulse) vs Forward Current
Tc=0, 10, 25, 35, 45, 55, 65, 75℃

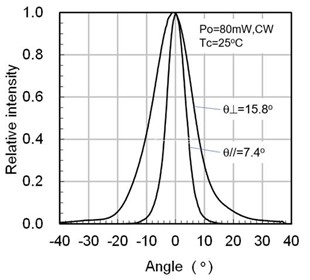

Far Field Pattern
Contact
If you are interested in receiving more information about HL65261MG, HL65262MG, or HL65264MG, please use the following links:
United States
Contact Form
Europe
Contact form
Asia
Contact form
Datasheet
HL65261MG/62MG/64MG
