Ushio begins production of new single-mode 670nm laser diodes


Ushio, Inc. has begun the mass production of HL67191MG and HL67192MG, offering two new laser diodes (LDs) for operation at the 670nm wavelength.
Providing output powers of 15mW (CW) and 30mW (pulsed), these single-mode LDs deliver high-temperature performance (up to 70°C) within a compact φ5.6mm can package. Both LDs achieve a low operating current of 30mA at 25°C (15mW in CW operation) and feature built-in monitoring photodiodes, creating high-reliability, cost-efficient devices ideal for battery-powered sensing and measuring equipment.

Single-Mode 670nm Laser Diode

Features of HL67191MG and HL67192MG

Details

  • Optical output power: 15mW (CW), 30mW (pulse)
  • Visible lasing: 670nm
  • Operating temperature: 70ºC max.
  • Single transverse mode
  • TE mode oscillation
  • Small package: φ5.6mm can

Applications

  • Bar-code reading
  • Measurement
  • Sensing

Packaging

  • Ushio standard MG (TO-56) package; two internal circuits available

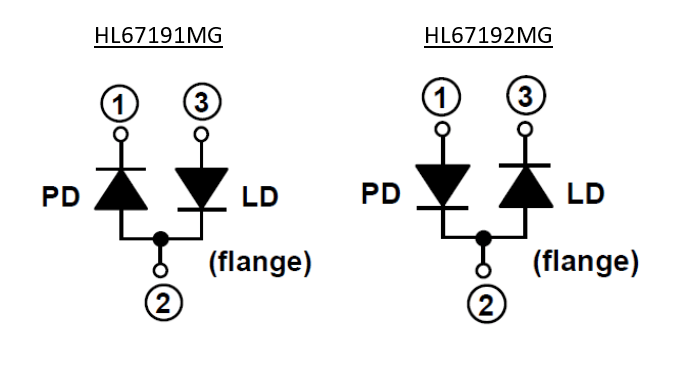

Packaging - Internal Circuits
Optical Output Power vs. Forward Current

Contact

If you are interested in receiving more information about HL67191MG or HL67192MG, please contact Sales Manager Robert Uchida at ruchida@ushio.com.
