Due to their long lifetime in comparison to conventional lamps, laser projectors are increasing in popularity. The total cost of ownership is reduced through the elimination of lamp replacement, and the use of red laser diodes (LDs) as a light source achieves excellent color reproduction with high efficiency. Ushio Inc. has created high-power red laser diode HL63623HD primarily for use as a light source for laser projectors.
Over recent years, Ushio has contributed to the expansion of laser projectors through our proactive suggestion of high-power red LD products within the market. In 2017, we launched two types of emitters: the single emitter HL63283HD (637nm, CW 1.2W) and the dual emitter HL63290HD (638nm, CW 2.2W, pulsed 2.8W). In 2019, we launched HL63520HD, a dual emitter with an impressive pulsed optical output power of 3.5W (638nm, CW 2.4W, pulsed 3.5W). As such, Ushio has contributed to the optimization of the optical design of various projectors by offering a varied lineup of products with differing light output and emitting options.
The new HL63623HD is a single emitter LD with CW optical output power of 1.5W. We have optimized the crystal growth conditions and chip structure in order to maintain high optical output power and high efficiency, even in high temperature environments. We successfully improved the chip performance by significantly refining the light extraction efficiency and heat dissipation from the chip.
As a single emitter LD, HL63623HD has achieved an outstanding CW optical output power of 1.5W and a lifetime of 20,000 hours, contributing to the higher brightness, lower cost, and longer life of laser projector light sources. A CW optical output power of 1.0 W at 55°C has also been achieved, allowing for further simplification of the cooling system.
Although HL63623HD is well-suited to laser projectors, it is also compatible with display and illumination applications in the 638nm region that require high power red LDs with high visual sensitivity.
Features of HL63623HD
- Optical output power: 1.5W (CW), 1.8W (pulse; frequency = 120Hz, duty = 30%)
- Lasing wavelength: 638nm
- Wall-plug efficiency: 43%
- Operating temperature: -10° – +55° C
- Multi-transverse mode
- TM mode oscillation
- Single emitter
- MTTF: >20,000 hours
- Laser projector
- Laser TV
- Laser modules
- Φ9mm CAN package
HL63623HD Internal Circuit
Typical Characteristic Curves
Output Power (CW) vs Forward Current

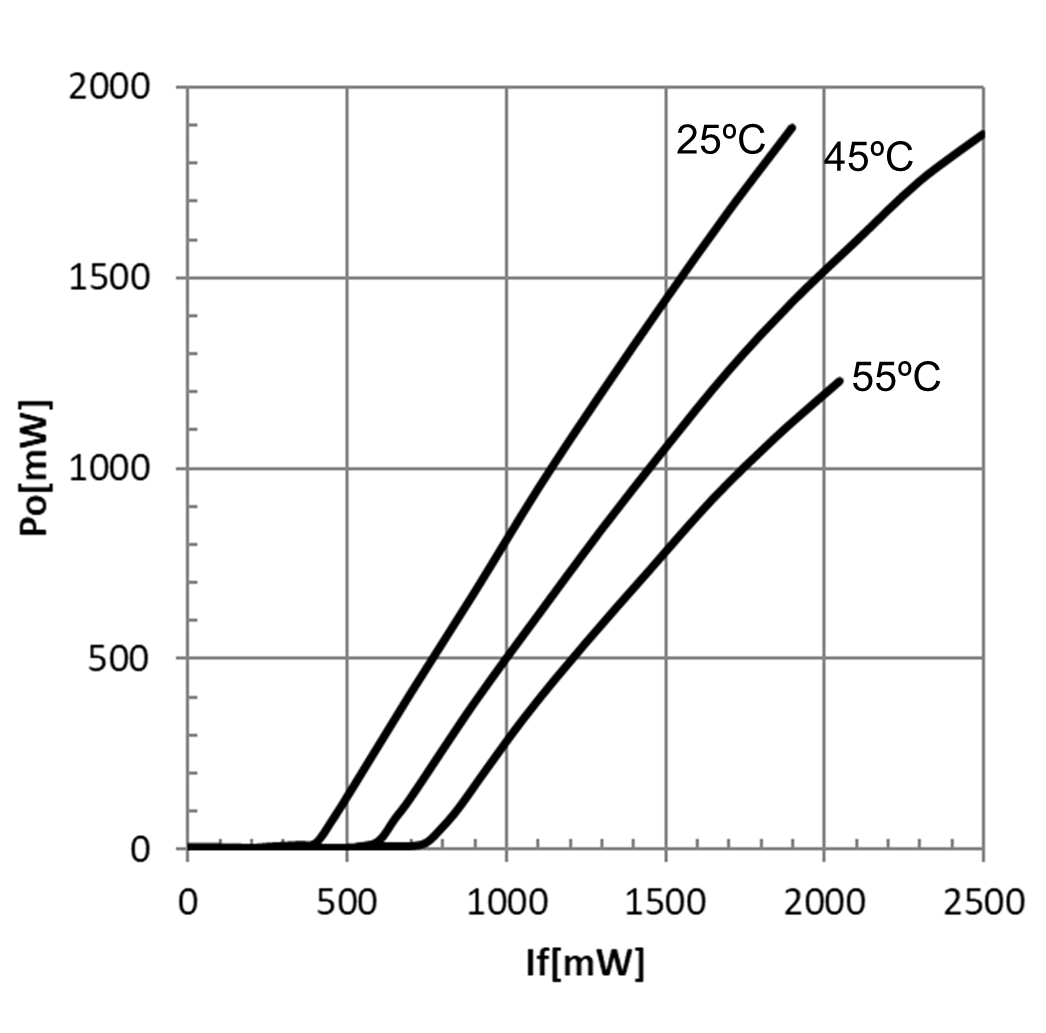

Output Power (Pulse) vs Forward Current
