In February, Ushio Inc. will be releasing a new single mode series of 660nm laser diodes (LDs) featuring an increased high-temperature operation of up to 90°C. Providing optical output power of 100mW (CW)/200mW (pulsed), HL65241DG/242DG/243DG will have an operating temperature specification range of -10°C to 90°C, making this series well-suited to sensing and biomedical applications.
Within the sensor market, 5G and IoT-related applications are currently experiencing rapid growth, bringing a steadily-increasing demand for semiconductor and electronic components along with it. Due to the effects of the worldwide Coronavirus pandemic, manufacturing companies are investing in production automation in an effort to improve their production efficiency, while the demand for FA sensors is also growing in logistics-related industries. In particular, photoelectric sensors with LDs are widely used as non-contact sensors to check for the existence and recognition of 2D and 3D objects.
Due to these increasing number of applications that require high-temperature operation and reliability, Ushio has worked to improve the temperature characteristics of our 660nm LDs within the high-temperature range through the optimization of our crystal growth conditions. As such, we have successfully raised the maximum operating temperature from current product’s 75°C to 90°C, thereby creating added value, increased reliability, and differentiation of equipment within the field of high-end sensors.
Features of HL65241DG/HL65242DG/HL65243DG
Details
- Optical output power: 100mW (CW), 200mW (pulse)
- Lasing wavelength: 660nm
- Operating temperature: -10° – +90° C
- Single transverse mode
- TE mode oscillation
- Selected built-in monitoring photodiodes available
- Three different connection types available (CC, AC, or FN)
Applications
- Sensing
- Biomedical
Packaging
- Φ5.6mm CAN package
HL65241DG Internal Circuit
HL65242DG Internal Circuit
HL65243DG Internal Circuit
Typical Characteristic Curves
Output Power (CW) vs Forward Current

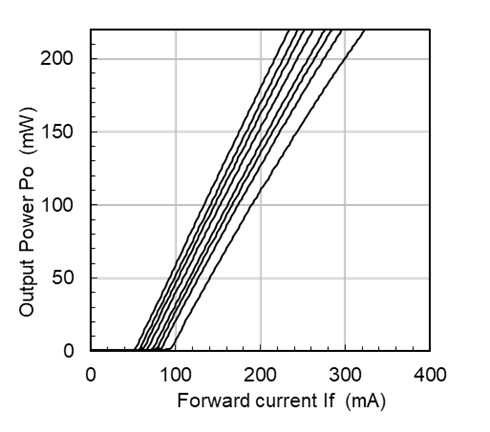

Output Power (Pulse) vs Forward Current
Far Field Pattern
Contact
If you are interested in receiving more information about HL65241DG, HL65242DG, or HL65243DG, please contact Sales Manager Robert Uchida at ruchida@ushio.com or use our contact form.
